Insulation Rubber Foam Sheet Rolls Rubber Foam Pipe For Cooling Equipment Suound Proof
Description:

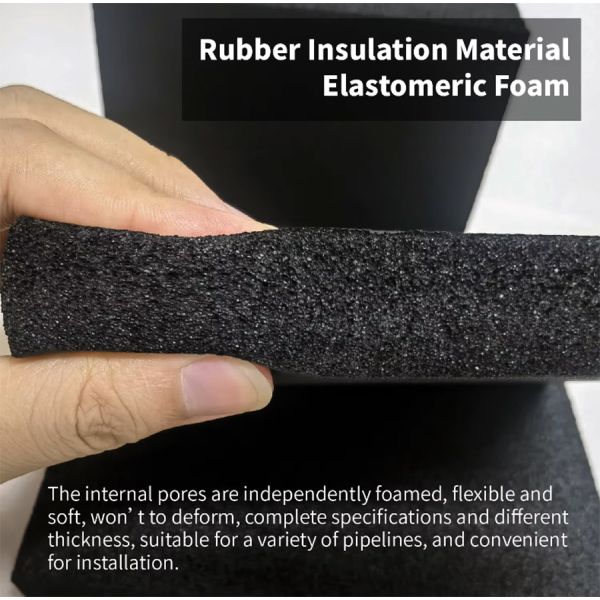

Rubber foam insulation materials are elastic closed-cell elastic materials, which are soft, resistant to bending, cold, heat, flame retardant, waterproof, low thermal conductivity,
shock absorption, sound absorption and other excellent properties. They can be widely used in central air conditioning, construction, and chemical industries.Textile, metallurgy,
communication, vehicles, electrical appliances and other industries and some of the various cold and heat medium pipes and containers can achieve the effect of reducing cold
and heat loss. In addition, the construction is simple, the appearance is neat and beautiful, and the product does not contain fiber dust, and will not breed any harmful substances
such as molds, so it is a high-quality new generation of thermal insulation material that crosses the century.
Rubber as the main raw material ,no fiber ,non-formaldehyde, non-CFC and other ozone-depleting refrigerant ,can be directly exposed to the air, nor harm for human health .Standard product is black ,there are two major categories: rubber foam insulation sheet and insulation pipe, widely applied in central air-conditioning system water pipelines ,ducts ,hot water pipeline and crafts pipe line
Specifications:
|
Item
|
Unit
|
Specification
|
Standard
|
|
Density
|
Kg/m3
|
40-50
|
GB/T 6343
|
|
Temperature
|
C°
|
-40-110
|
GB/T 17794
|
|
Flammability
|
|
Class-0
|
BS 476:Part 6
|
|
Oxygn Index
|
%
|
>=40
|
GB/T 2406
|
|
SDR
|
|
<=65
|
GB/T 8627-1999
|
|
Conductivity factor
-20C°
0C°
40C°
|
W/M·K
|
<=0.031
<=0.034
0.036
|
GB/T 10294
|
|
Water vapor permeability
|
factor
|
|
>=1.0x106
|
GB/T 17146-1997
|
|
|
Coeffcien
|
g/(m.s.pa)
|
<=1.96x10-11
|
|
|
Water absorption ratio in vacuum
|
%
|
<=10
|
GB/T 17794-2008
|
|
Dimension stability 105+/-3C°,7d
|
%
|
<=10
|
GB/T 8811
|
|
Crack resistance
|
N/cm
|
>=2.5
|
GB/T 10808
|
|
Compression resilience ratio
Compression ratio 50%
Compression time 72h
|
%
|
>=70
|
GB/T 6669
|
|
Anti-ozone
|
|
Not cracking
|
GB/T 7762
|
|
Aging resistance
|
|
Slightly crumpling,no cracks
No pin holes,not deforming
|
GB/T 16259
|
Main application:
1. Chilled water pipes, condense pipes, air ducts and hot-water pipes of air-conditioning equipment
2. heat preservation and insulation of central air-conditioning system
3. Every kind of cold/hot medium piping
Advantage:
· Low thermal conductivity factor
· good fireproof property
· Vibration resistance
· Closed pore foaming good moisture resistance
· Good pliability
· Beautiful appearance and easy to install
· Good energy saving property
